BRIDGEGard™

ENGINEERED PEDESTRIAN RAILING SYSTEMS

When safety and security matter most, Elite’s BRIDGEGard Railing Systems deliver dependable performance. Part of the Elite COREGard Architectural Products brand of Elite Fence Products, BRIDGEGard pedestrian bridge railings are engineered from heavy-duty aluminum components, including rails, pickets, and posts built for demanding environments. The system features robust 2” x 3-1/2” rails, 1” x 1” pickets and 4” x 4” posts for exceptional strength and stability. Custom architectural elements can also be produced to achieve a distinctive, tailored look.

Designed for long-lasting performance, BRIDGEGard railings resist rust, warping and cracking, all without the need for painting or ongoing maintenance. BRIDGEGard railings are powder coated to exceed AAMA 2604 standards for superior durability. BRIDGEGard pedestrian railings are fully tested and backed by a limited lifetime warranty.

  • Engineered for TESTED Performance
  • Meets AASHTO LRFD* Requirements
    *(American Association of State Highway Transportation Officials) (Load and Resistance Factor Design)
  • 3-Part Submittals Available
  • Primary Application: Pedestrian Railing for Bridges

BRIDGEGard Specs*:

Width: 8' Panels
Heights: 3-1/2' - 7'
Min. Strength: 35,000 psi
Alum. Alloy: 6005-T5 Alloy (Rails & Posts)
Posts: 4" and .250 Wall
Pickets: 1" and .065 Wall

* These are the standard specifications. Custom designs may vary.

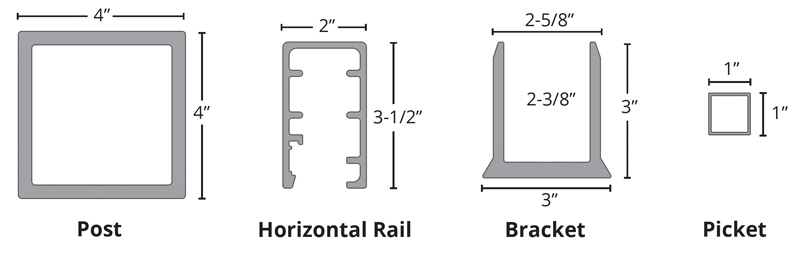

BRIDGEGard Profiles:

These are examples of typical profiles:

BRIDGEGard Colors:

Textured (Matte) Black

Textured (Matte) White

Textured (Matte) Quaker Bronze

Textured (Matte) Sandstone

Black

White

Quaker Bronze

Sandstone

Beige

Hartford Green

Walnut Brown

Colors shown are simulated and may vary.

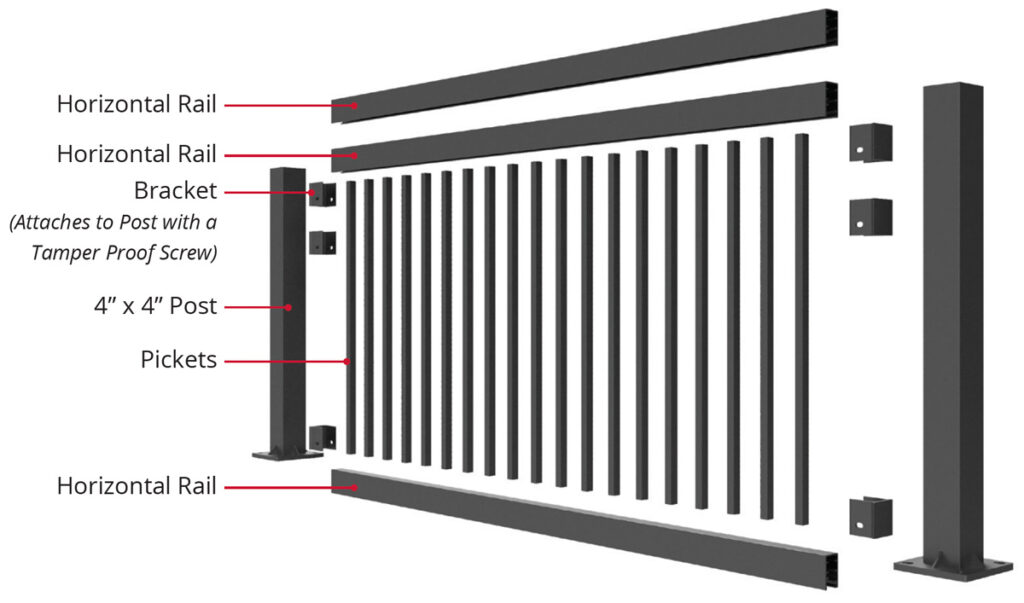

BRIDGEGard Components:

BRIDGEGard Resources:

Specifications, Drawings, Testing/Engineering, Brochure and Warranty
