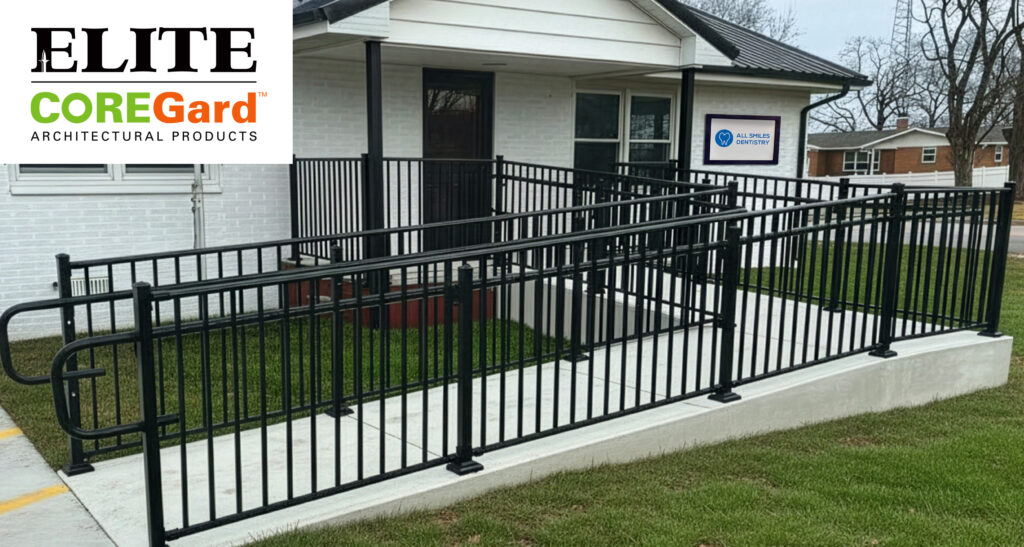

LEGACY 158

ALUMINUM RAILING SYSTEMS

The Elite LEGACY Aluminum 1-5/8” Railing System delivers the perfect combination of style and strength. Crafted from high-quality aluminum and powder-coated to the highest standards, it provides long-lasting durability with virtually no upkeep. It will not rust, warp, crack, or require painting, and it stands up beautifully to the outdoor elements. The clean, modern design complements any property. The panels are pre-assembled, making installation easy and cost effective. LEGACY railing systems are backed by a limited lifetime warranty.

LEGACY 1-5/8” Specs:

LEGACY 1-5/8” Specs*:

Width: 2’, 4’, 5’ and 6’ Panels
Height: 3’ (36”) and 3-1/2’ (42”)

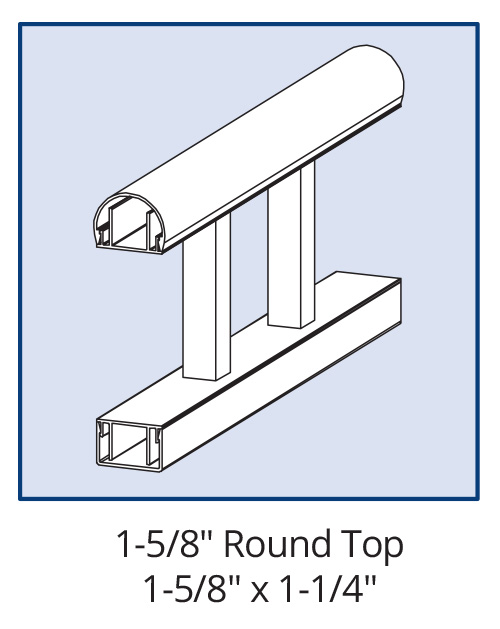

Top Rail: 1-5/8” x 1-1/4”
Bottom Rail: 1-1/2” x 1”
Min. Strength: 35,000 psi
Alum. Alloy: 6005-T5 Alloy (Rails & Posts)
Posts: 2” x 2” x .125 Wall Only 2-1/2” x 2-1/2” x .100 Wall 3” x 3” x .125 Wall 4” x 4” x .125/.250 Wall 6” x 6” x .125/.250 Wall
Pickets: 3/4” x 3/4” x .050 Wall 3/4” Round .065 Wall
Picket Spacing: 3-3/4”

Matching Walk and Drive Gates are also available.

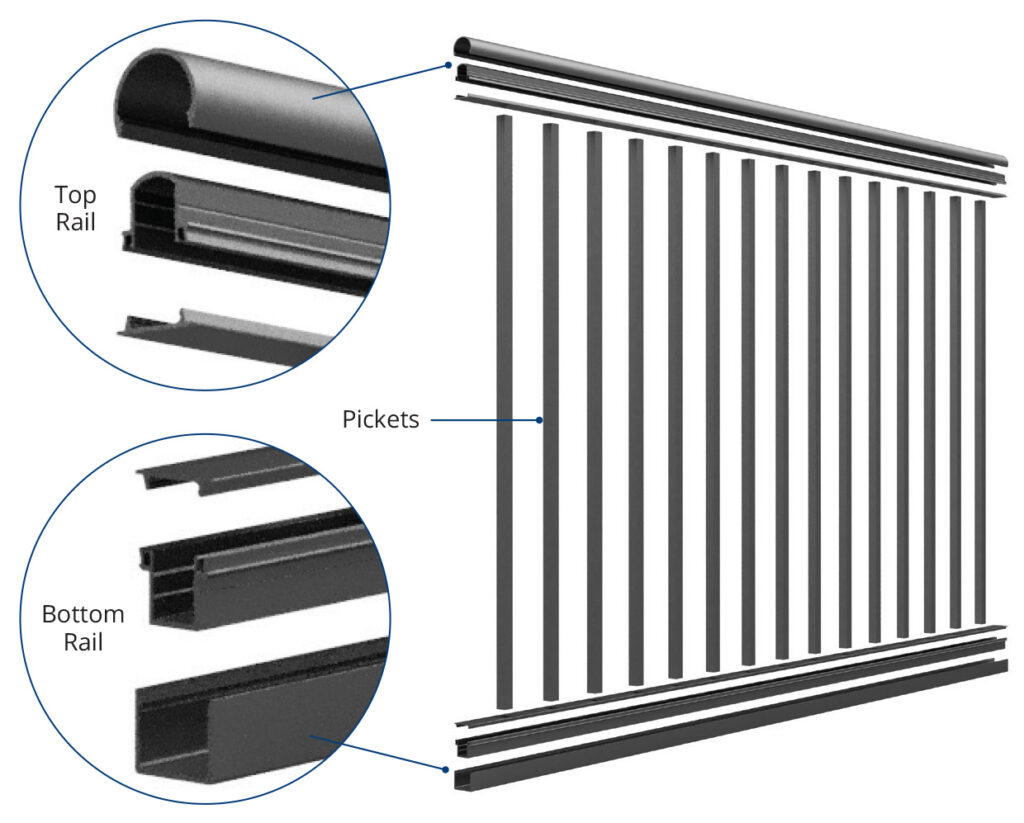

LEGACY 1-5/8” Components:

LEGACY 1-5/8” Colors:

Textured (Matte) Black

Textured (Matte) White

Textured (Matte) Quaker Bronze

Textured (Matte) Sandstone

Black

White

Quaker Bronze

Sandstone

Beige

Hartford Green

Walnut Brown

Colors shown are simulated and may vary.

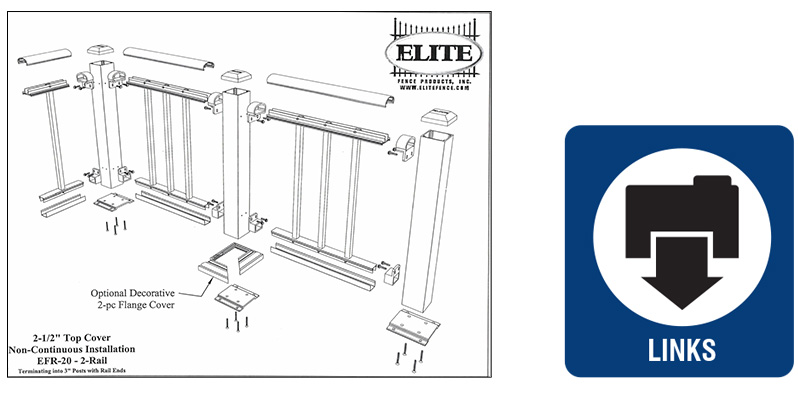

LEGACY 1-5/8” Resources:

Specifications, Drawings, Testing/Engineering, Brochure and Warranty

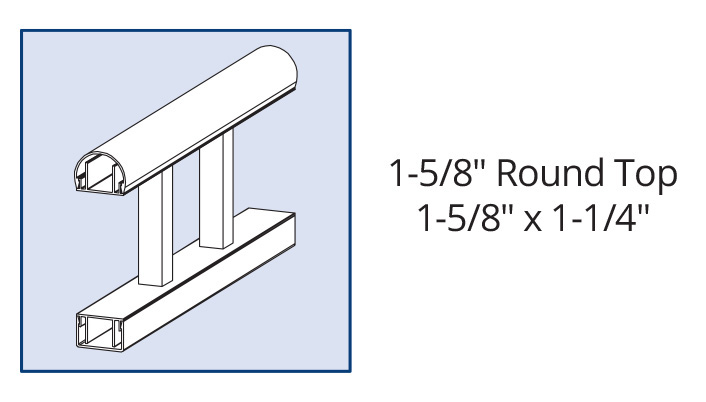

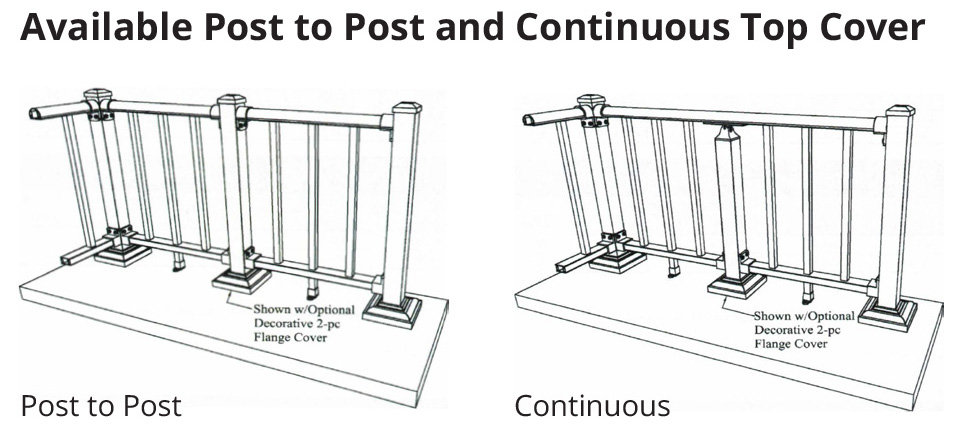

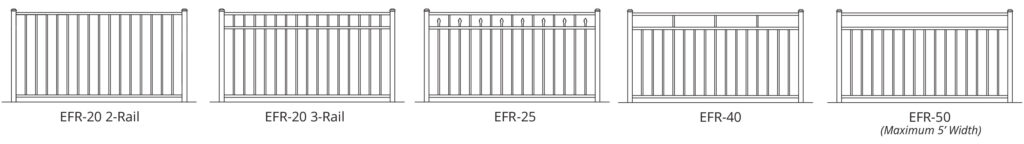

LEGACY 1-5/8” Profiles:

These are examples of typical profiles:
