CORErailing
ASSEMBLED PANEL RAILING SYSTEMS
The Elite CORErailing Aluminum Railing System delivers the perfect combination of style and strength. Crafted from high-quality aluminum and powder-coated to the highest standards, it provides long-lasting durability with virtually no upkeep. It will not rust, warp, crack, or require painting, and it stands up beautifully to the elements year after year. CORErailings are powder coated to exceed AAMA 2604 standards for superior durability. The modern, post to post design complements any property. CORErailing is assembled for easy installation and cost effectiveness. All CORErailings are backed by a limited lifetime warranty.
- Assembled Panels for Easy Installation
- IBC- Chapter 16/ASCE-7LIFE SAFTEY Testing
- Engineered for TESTED Performance
- 3-Part Submittals Available
- Residential, Commercial and Multi-Family Applications
CORERailing Specs*:
| Width: | 2’, 4’, 5’ and 6’ |
| Height: | 42” Commercial (36” Optional) |
| Horz. Rails: | Top – 2” (.195”) w x 1.75” h Bottom – 1.5” w x 1.25” h |
| Min. Strength: | 35,000 psi |
| Alum. Alloy: | 6005-T5 Alloy (Rails & Posts) |
| Posts: | 2”, 2.5”, 3.0” and 4.0” Wall with Varying Wall Thickness |
| Pickets: | 3/4” x 3/4” x .050 Wall |
| Picket Spacing: | 3-3/4” |
Matching Walk and Drive Gates are also available.

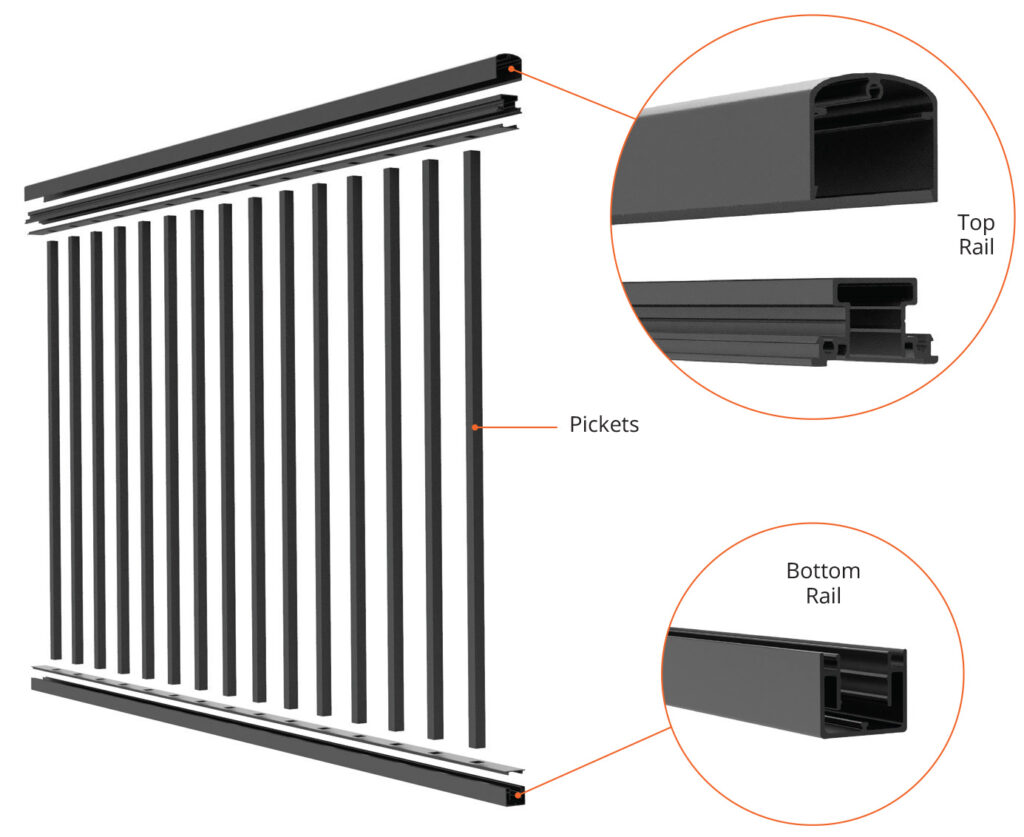

CORERailing Components:
CORERailing Colors:
Textured (Matte) Black
Textured (Matte) White
Textured (Matte) Quaker Bronze
Textured (Matte) Sandstone
Black
White
Quaker Bronze
Sandstone
Beige
Hartford Green
Walnut Brown
Colors shown are simulated and may vary.

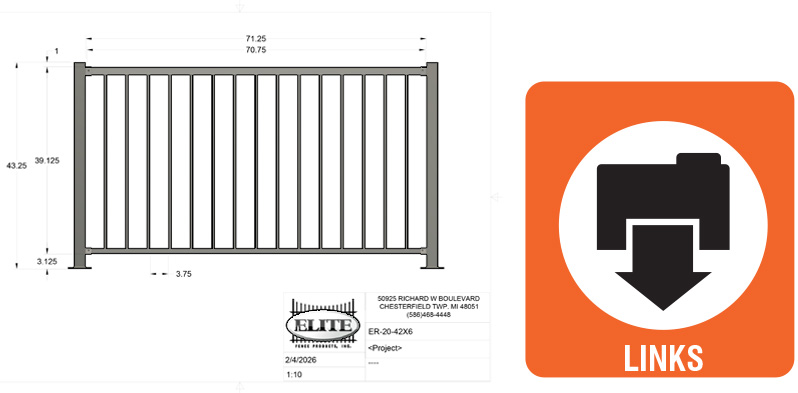

CORERailing Resources:
Specifications, Drawings, Testing/Engineering, Brochure and Warranty

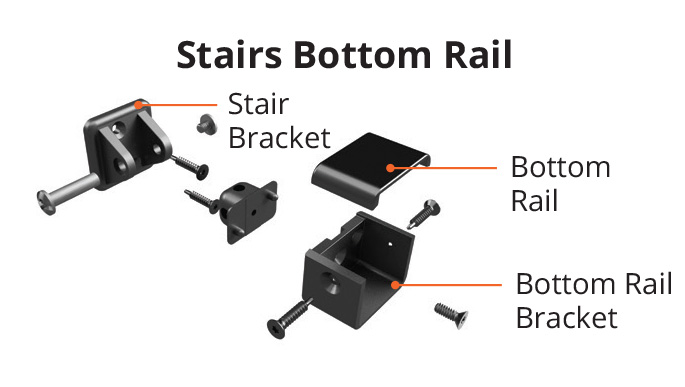

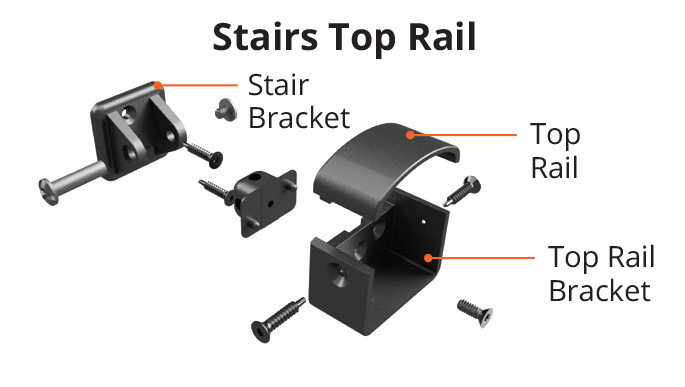

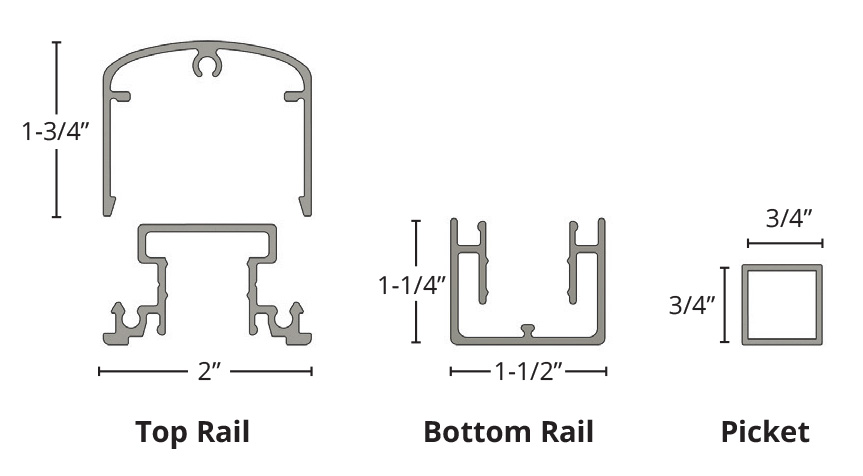

CORERailing Profiles:
These are examples of typical profiles:
